Depending on your subscription plan, PNG export is available in both low and high resolution, allowing you to export an image of your site plan from OnePlan.
NOTE: If you need a PDF, export as a PNG and convert to PDF using an online tool.
You might want to export your plans for multiple reasons:
-
Presentations
-
Sharing specific views of the plan
-
Printing (A0 for control rooms, A4 for public facing maps)

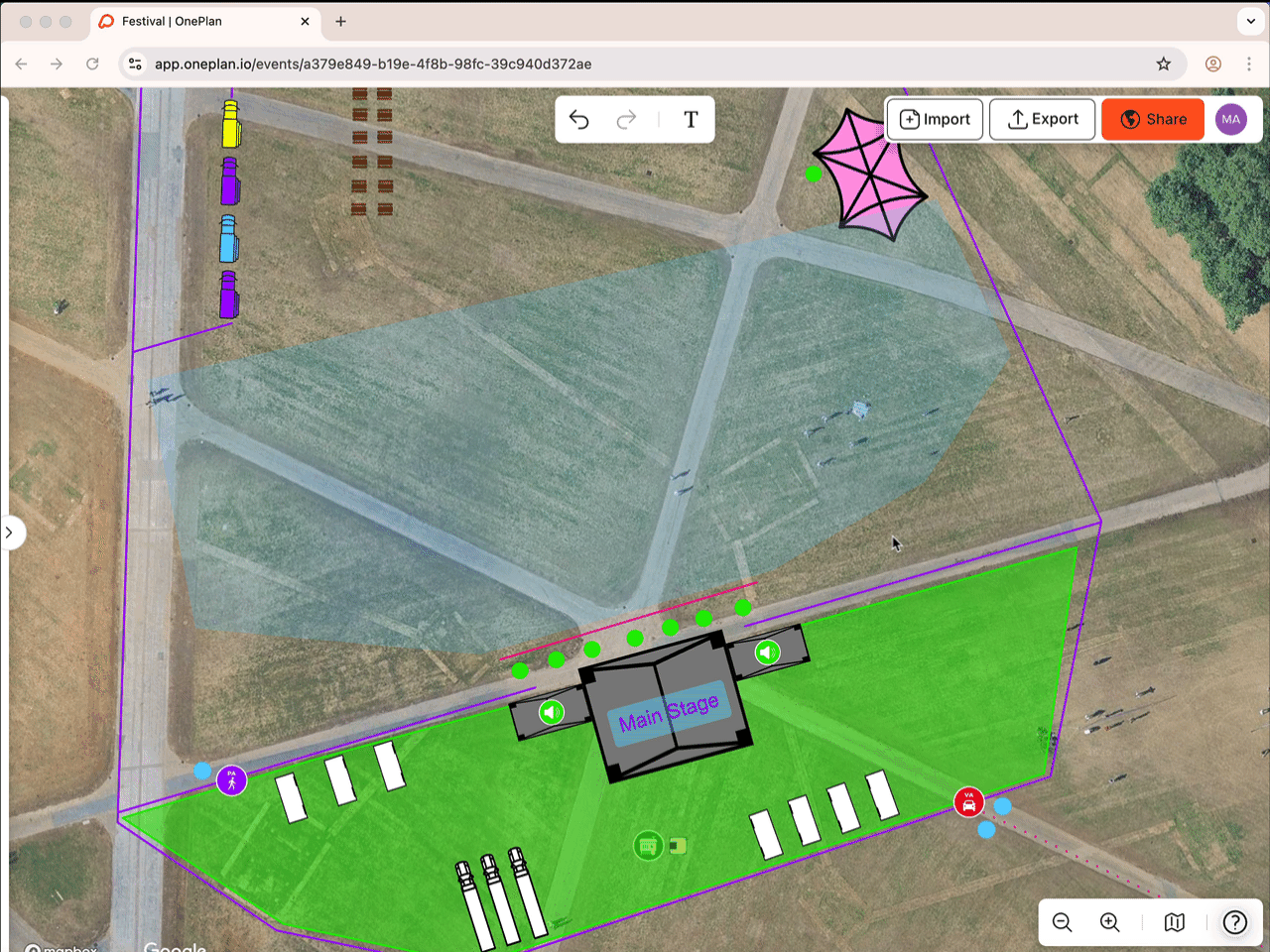

Exporting your plan

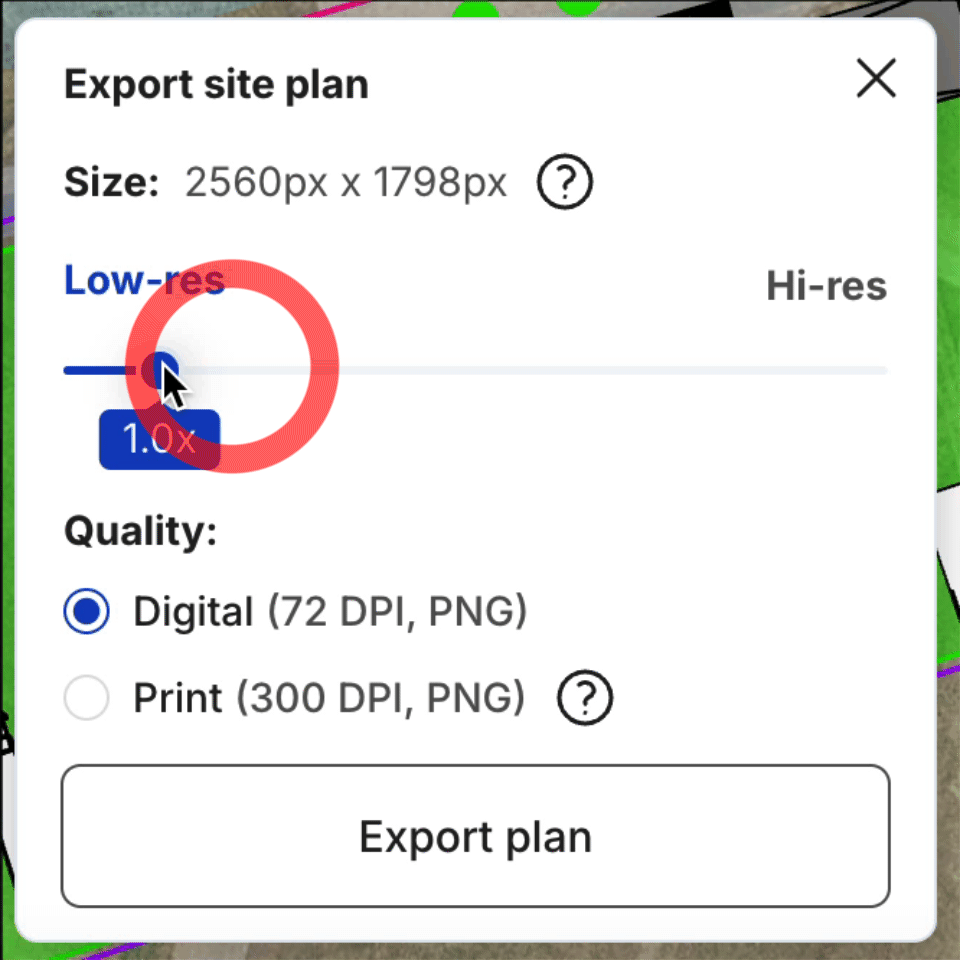

Choose the size in pixels that you would like your image to be via the slider;
-
Choose digital (72DPI) or print quality (300DPI)
-
Press export!
3. Once the image is generated, a toast will tell you how much time until your browser starts downloading

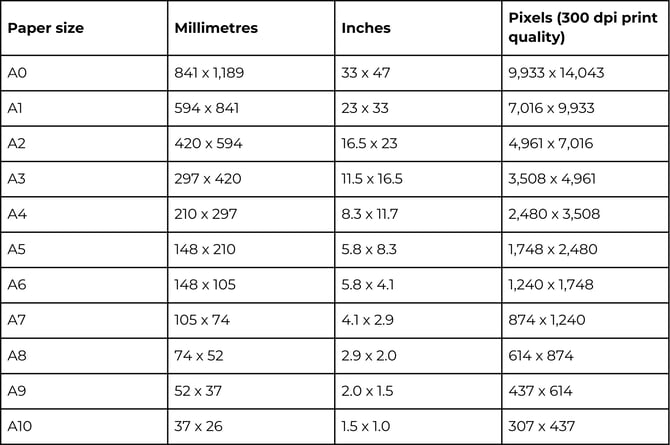

Recommended paper sizes (Worldwide exc USA):
Recommended paper sizes (US):
Recommendations to prepare for printing:
-
If you would like to print a specific paper size, use the slider to match the pixels with the corresponding size in the table above and export the image.
-
Once exported you may need to convert your PNG to a PDF, you can do this via a free online converter.
-
You may need to resize your image to fit the mm or inch measurements in the table, your exported image is relative to your browser size.
